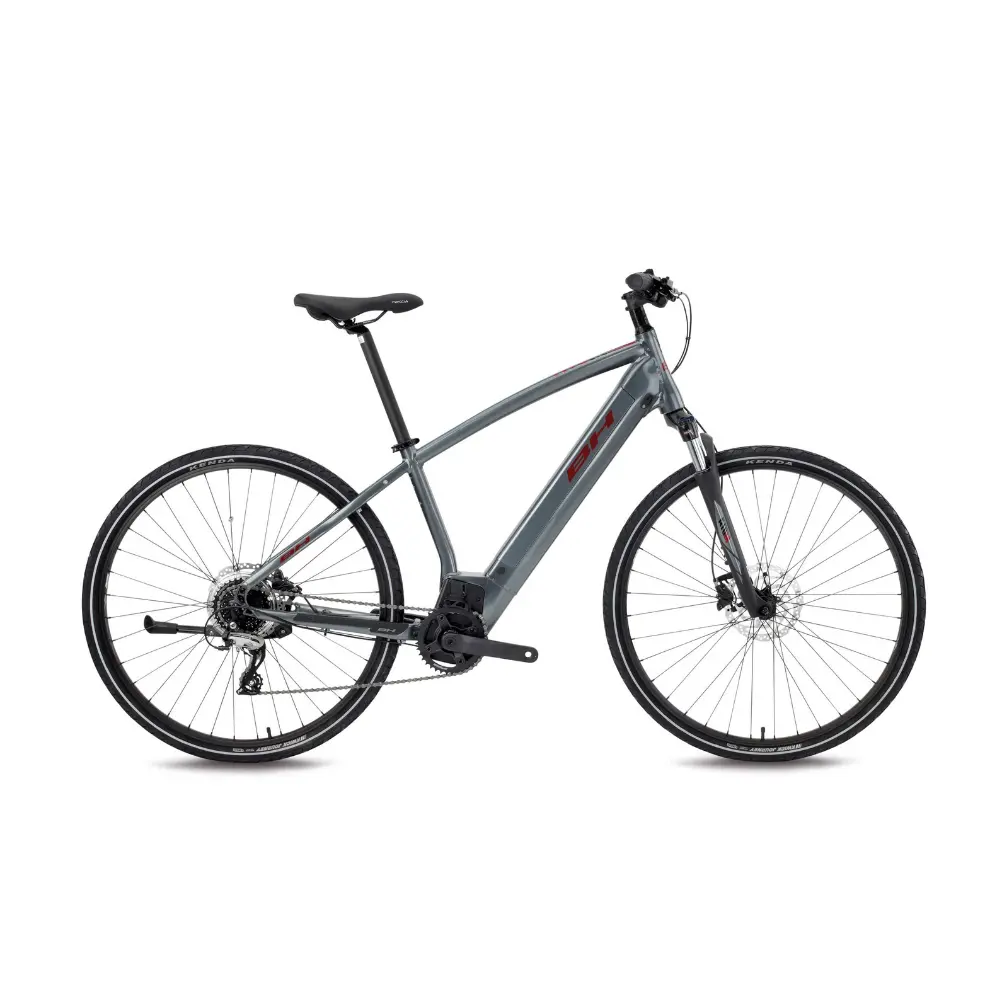

Ride farther with the BH ATOM Cross – up to 105 km range, 500Wh integrated battery, Shimano 8-speed, and hydraulic disc brakes for all-terrain versatility.
The BH ATOM Cross is built for riders who want the freedom to explore roads, trails, and daily commutes with the reliability of a high-performance hybrid e-bike. Thanks to BH Bikes’ patented “TS System”, the 500Wh battery is seamlessly integrated into the diagonal tube, creating a clean and traditional frame geometry while delivering all the power you need for up to 105 km of assisted range.
The BH1E mid-drive motor offers smooth pedal assistance for natural and responsive riding. Matched with a Shimano Acera 8-speed drivetrain, you’ll have a reliable gear range for tackling varied terrain. The SR Suntour NEX HLO 63mm suspension fork softens bumps and absorbs shocks, making it suitable for light off-road and urban routes alike.
Equipped with Shimano MT200 hydraulic disc brakes, 700x45C Kenda tires, and a double-wall alloy wheelset, the ATOM Cross offers precision, control, and comfort on every ride. The Selle Royal Freccia gel saddle, ergonomic grips, and 720mm riser handlebar further enhance ride comfort.
This is the ideal e-bike for versatile riders seeking style, performance, and everyday practicality, wrapped in a frame that looks as sharp as it rides.
Frame: Sport Alloy 28", internal cable routing
Fork: SR Suntour NEX HLO, 63mm travel
Motor: BH1E mid-drive motor
Battery: 500Wh integrated (TS System)
Display: BH X Display Lite
Range: Up to 105 km
Drivetrain:
Shifter: Shimano Acera
Rear Derailleur: Shimano Acera 8-speed
Crankset: FSA 38T, 170mm
Cassette: Shimano HG200 (11–32T)
Chain: Shimano HG40
Brakes:
Front & Rear: Shimano MT200, 180mm hydraulic disc
Wheels:
Rims: Alloy double wall
Tires: Kenda K1129, 700x45C
Hubs: Shimano
Spokes: Stainless steel
Seat:
Saddle: Selle Royal Freccia gel
Seatpost: Alloy 31.6 mm
Seat Clamp: Quick release
Cockpit:
Handlebar: BH MTB Alloy Riser, 720mm
Stem: BH Ahead
Headset: Tapered with adaptor
Grips: BH Ergonomic
Accessories:
Kickstand, chainstay protector, pedals (anti-slip), wheel reflectors
Optional Upgrades (not included):
Winter battery cover, light cable
Weight (approx.): Not specified
Country of Origin: Spain
Brand | BH Bikes |
---|---|
Foldable | No |
For Kids | No |
Max Load Capacity | Over 100 kg |
Motor Power | 250W |
Product Type | Cross, Hybrid |
Range | 40–80 km |
Top Speed | Up to 25 km/h |
Usage | Everyday Commute, Mixed Terrain, Travel / Touring |
